Description

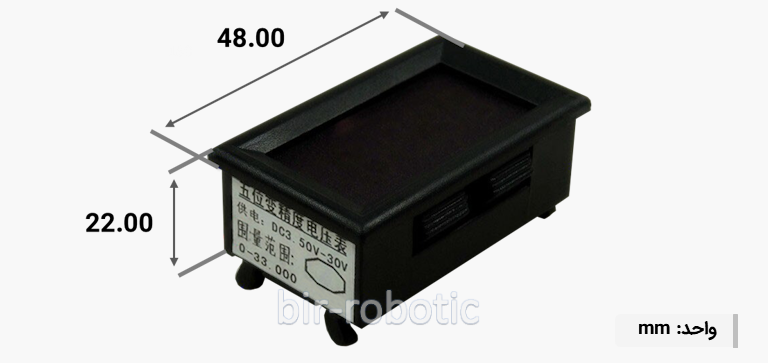

1-Small size(48×29×22mm) and light weight(16g), portable and easy to install.
2-Wide measuring range (DC0-33V) and high measurement accuracy (0.3‰+ 2words).
3-Easy Wiring: Red wire: Power supply+; Yellow wire: Measure+; Black wire: Power supply-, Measure-.
4-With reverse connection protection,the meter will not burn when reverse connected,hence safe for use
5-Please note that the meter needs independent power supply (DC3.5-30V).
Feature
Dimensions:48mm x 29mm x 21mm
Measure voltage: DC 0-30.000V
Power Supply: DC 5-30V (separate powered )
Input Polarity: DC voltage
Refresh rate: 5 times per second
Measurement precision: ± (0.3 ‰ +2 digit)
Display: five 0.36″ digital LED Tube
Display Color: Blue
Operating temperature: -10°c to 65°c
Temperature coefficient: less than 25PPM /°c
Package Includes
1x Digital Voltage meter
