* بر اساس موجودی انبار S-400-60 یا S-400-65 ارسال می گردد.
technical data

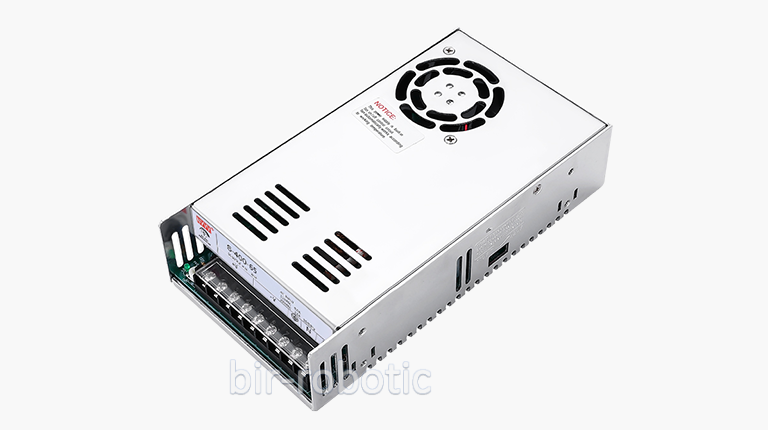

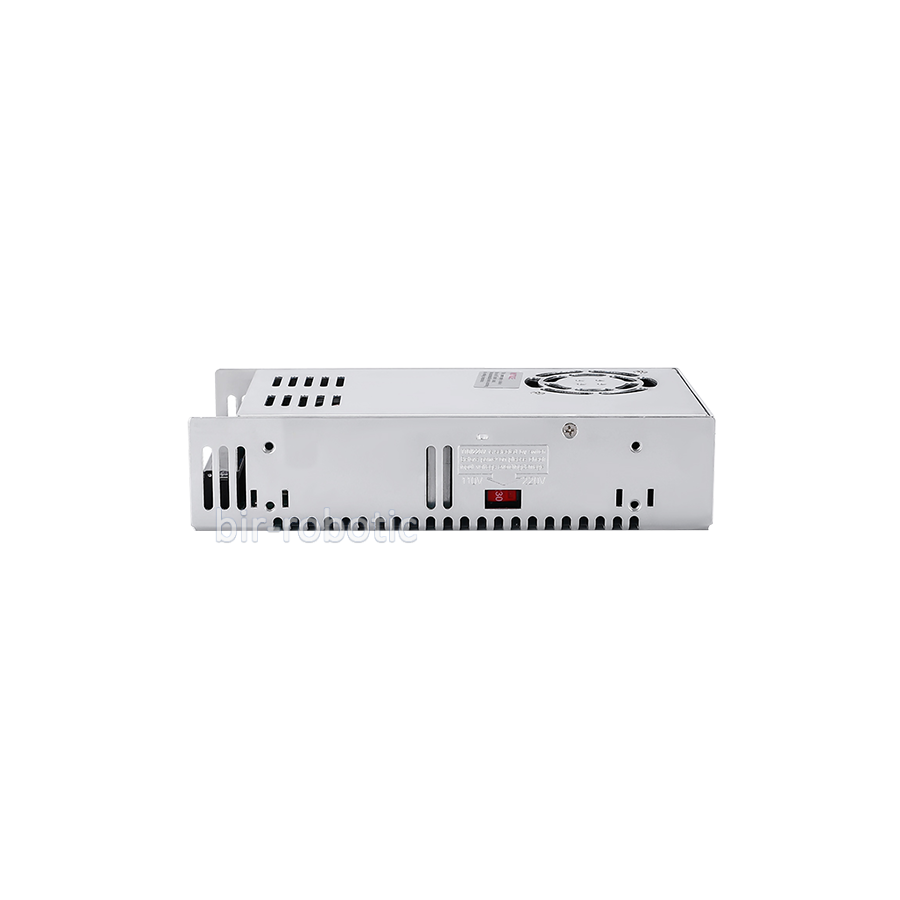

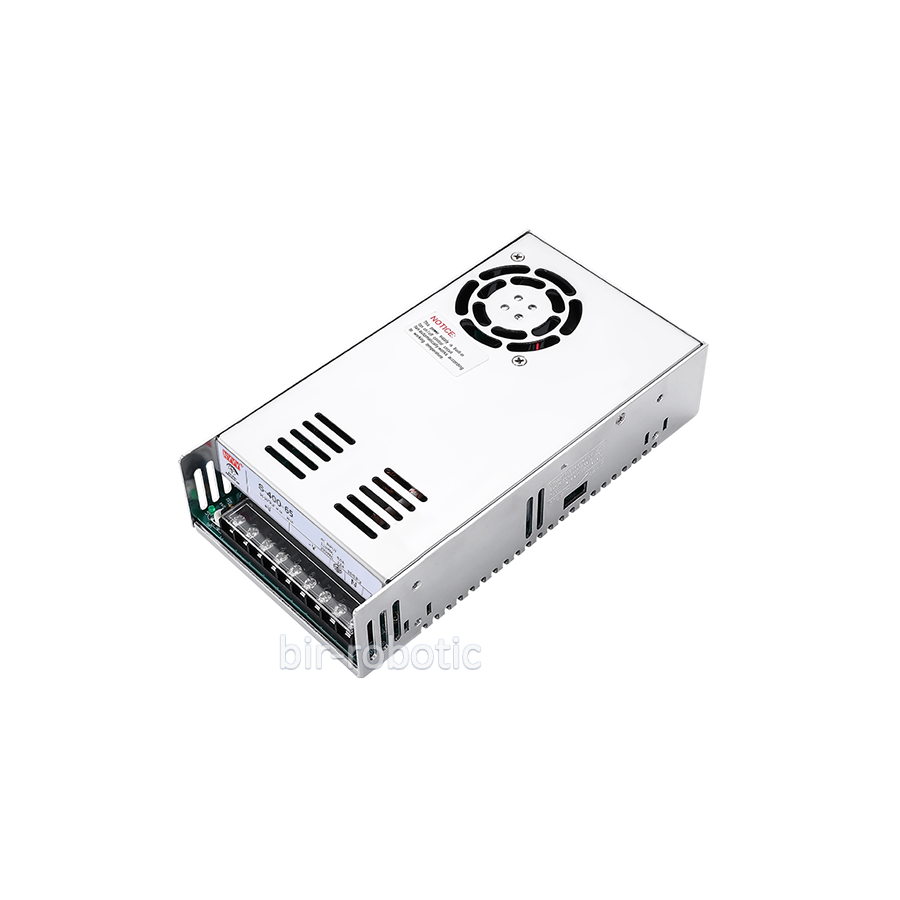

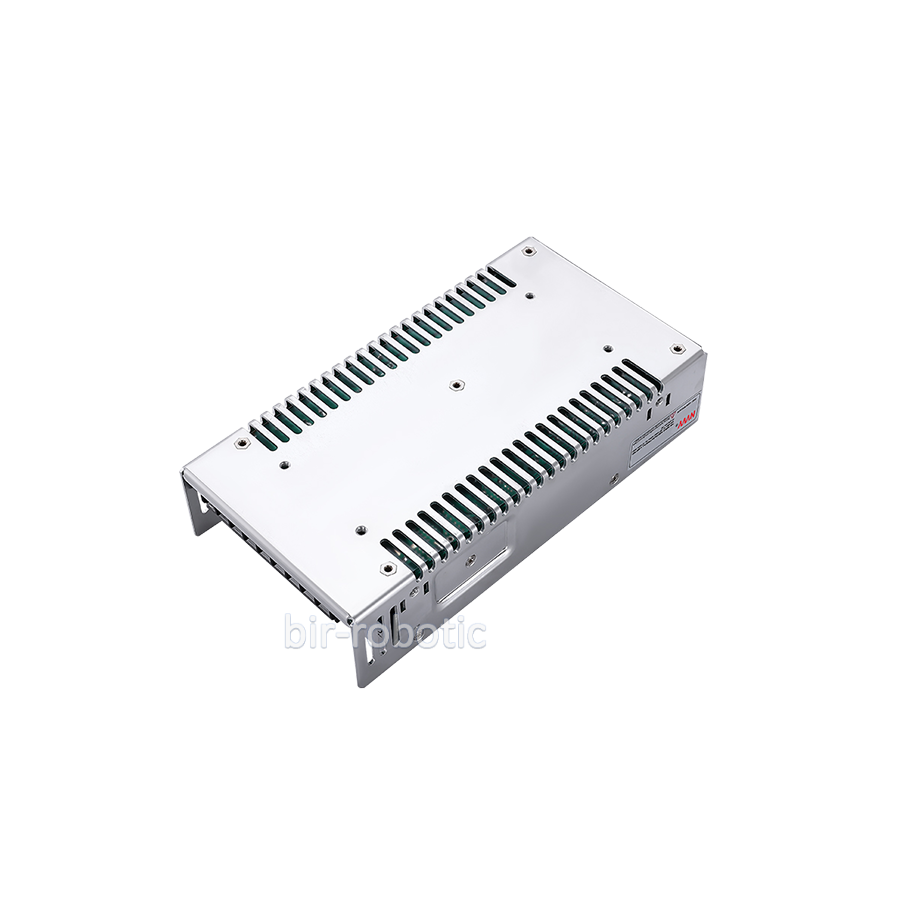

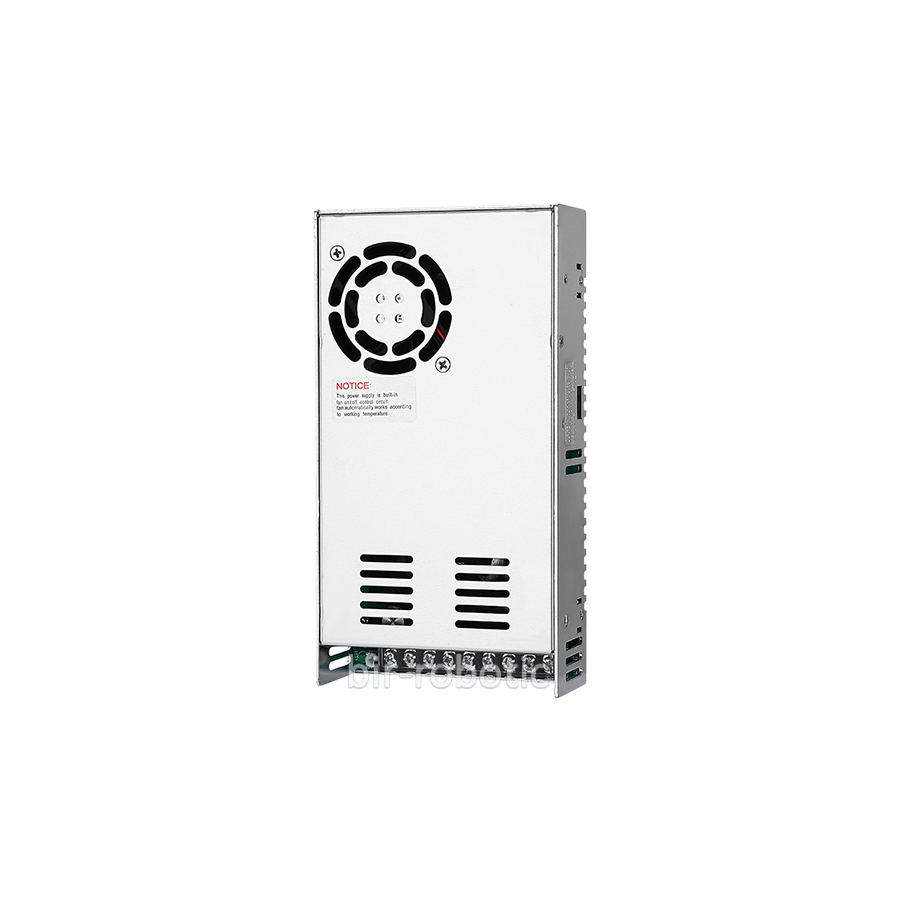

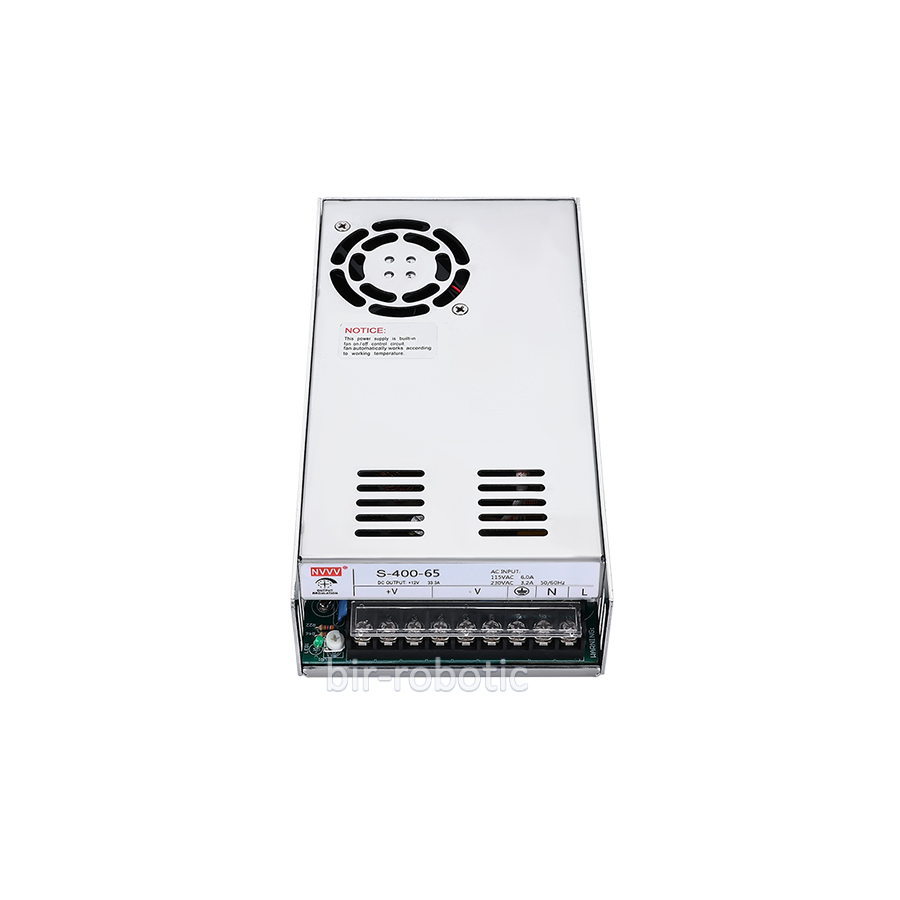

NVVV S-400-60 / S400W-60V switching power supply
output voltage: 60V DC
power: 400W
applications
► buffer power supply for RD6006 microprocessor-based voltage converters
DC output voltage: 60V
rated current: 6.6A
rated power: 396W
ripple and noise:<240mV
voltage accuracy: ± 1%
output voltage adjustment range: ± 10%
load regulation: <± 0.5%
linearity factor: <± 1%
voltage range: 90-132VAC / 180-264VAC 47Hz ~ 63Hz; 254VDC ~ 370VDC
efficiency (typical): > 86%
working current: <5.2A 115VAC, <2.8A 230VAC
stroke: 110VAC: 25A, 220VAC: 50A
Start, rise, hold time: 200ms, 50ms, 20ms: 230VAC
overcharge protection: 105% -135% type: constant current output, + V0 drops to the undervoltage point to cut off the output, reset: power on again
OVP high voltage protection: Turn off the output when> = 115% -145%
over voltage protection: Turn off the output when <10% -45%
short circuit protection: turns the output off
temperature protection: RTH3:> = 65 ° C fan starts, = 80 ° C output off (5V-15V)
RTH3:> = 70 ° C fan starts, = 85 ° C output off (18V-48V)
work: -10 ° C ~ + 50 ° C, 20% ~ 90% RH
storage: -20 ° C ~ + 85 ° C, 10% ~ 95% RH
withstands tension: Input-output: 1.5 kV AC.
Input: – Case: 1.5 kV AC.
Output: – Case: 0.5 kV AC for 1 minute
leakage current: Input-output <6mA at 1.5KVAC
leakage current: Input-output <1.5 mA at 220 V AC
insulation resistance: Input-output, input housing, output housing: 500VDC / 100MΩ

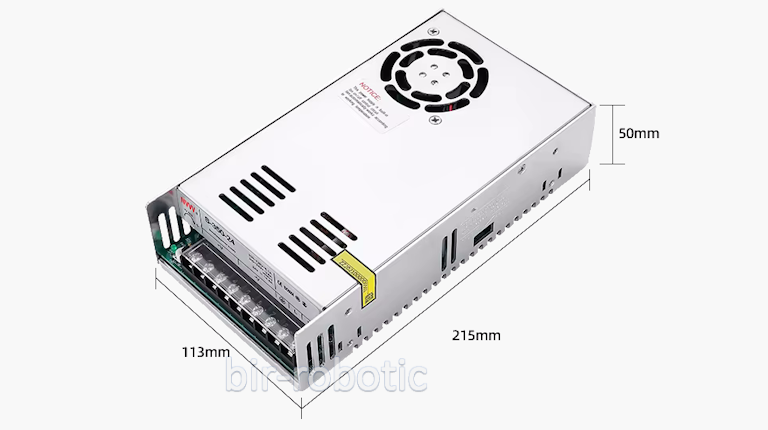

dimensions: 215mm x 115mm x 50mm
weight: 874.1 / 936.3 g
